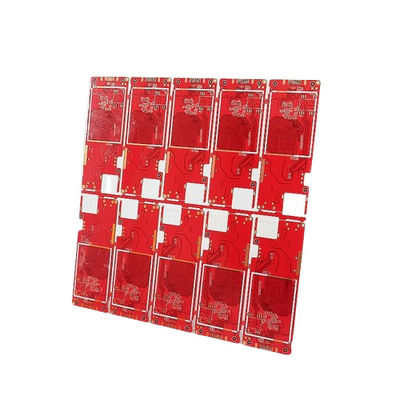

FR4 Double-layer Circuit Board Red Ink White Silk Screen Professional Customized Printed Circuit Board

Miejsce pochodzenia China
Nazwa handlowa JIETENG
Numer modelu PCB circuit board
Minimalne zamówienie Negocjowalne
Cena Negotiable
Szczegóły pakowania Pusty karton, zapakowany próżniowo
Czas dostawy 5-8 dzień roboczy
Zasady płatności Negocjowalne
Możliwość Supply 360000 metrów kwadratowych / rok

Skontaktuj się ze mną, aby otrzymać bezpłatne próbki i kupony.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype'a: sales10@aixton.com

W razie jakichkolwiek wątpliwości zapewniamy całodobową pomoc online.

x
Szczegóły Produktu
Grubość deski 1,6 mm Materiał FR4
Warstwa 6 Grubość miedzi 1 uncja
Kolor maski lutowniczej Zielona Kontrola impedancji - Tak, tak.
Minimalny odstęp między wierszami 0,1 mm Kolor sitodruku Biały
High Light

customized double-layer circuit board

,

double-layer Printed Circuit Board

,

red ink double-layer circuit board

Zostaw wiadomość
opis produktu

Product Description:

The FR4 PCB Board stands as a quintessential component in the realm of electronic devices, offering a combination of reliability, durability, and high performance. FR4, which stands for Flame Retardant 4, refers to a grade of fiberglass-reinforced plastic board, which is the backbone material for most printed circuit boards (PCBs) today. Known for its excellent insulating properties, mechanical strength, and thermal resistance, FR4 PCBs are the industry standard for a wide range of electronic applications.

This particular FR4 PCB Board is meticulously designed to cater to advanced electronic needs with its six-layer construction, providing ample space for a complex circuitry that is required in high-speed or high-frequency applications. The multilayer design not only allows for a more compact size but also enhances the board's overall functionality and electrical performance.

One of the critical attributes of this PCB is the minimum line spacing of 0.1mm. This fine line spacing is indicative of the board's capability to support high-density designs, allowing for more components to be placed on the board without the risk of short circuits. This is particularly beneficial for modern electronic devices that demand miniaturization without compromising on performance.

Another significant feature of this FR4 PCB Board is impedance control. Impedance is a critical parameter in the design and operation of PCBs, especially in applications where signal integrity is paramount. The ability to control the impedance ensures that the board can maintain signal clarity and minimize losses, which is essential for maintaining the performance of high-speed circuits. This level of control is a testament to the board's advanced engineering and the precision with which it is manufactured.

The copper thickness of 1oz on the FR4 PCB Board is a standard measure that provides a good balance between cost, flexibility, and performance. It ensures sufficient conductivity for most applications while maintaining the board's structural integrity. This copper thickness also allows the board to carry a significant current load, making it suitable for a wide range of electrical applications.

As a type of PCB Board, the FR4 PCB Board is versatile and can be used in various sectors, including consumer electronics, automotive, aerospace, and healthcare. Its robustness makes it an ideal choice for devices subjected to harsh environments or mechanical stresses. The fiberglass-reinforced PCB is resistant to moisture, solvents, and other chemicals, which means it can maintain its performance over time, even under challenging conditions.

The choice of a fiberglass-reinforced plastic board for the construction of PCBs is a strategic one. Fiberglass provides the mechanical strength needed to withstand the physical stresses of component installation and use, while the plastic matrix ensures the board remains lightweight and cost-effective. The combination of these materials results in a high-quality PCB that can be reliably produced and used in large volumes.

In summary, this FR4 PCB Board is a testament to the technological advancements in electronic components. With attributes such as a minimum line spacing of 0.1mm, impedance control, a copper thickness of 1oz, and a six-layer configuration, it stands as a superior choice for demanding electronic applications. Whether for consumer gadgets, medical instruments, or industrial equipment, this fiberglass-reinforced PCB guarantees performance, reliability, and efficiency.



Features:

  • Product Name: FR4 PCB Board
  • Min Line Width: 0.1mm
  • Solder Mask Color: Green
  • Surface Finish: HASL (Hot Air Solder Leveling)
  • Impedance Control: Yes
  • Layer: 6
  • Material: Fiberglass-Reinforced Plastic Board
  • Type: Fiberglass-Reinforced PCB
  • Composition: Fiberglass-Reinforced Plastic Board


Technical Parameters:

Parameter Specification
Type PCB Board
Material FR4 (Flame-Retardant Printed Board)
Copper Thickness 1oz
Min Line Width 0.1mm
Min Line Spacing 0.1mm
Min Hole Size 0.2mm
Solder Mask Color Green
Surface Finish HASL
Silkscreen Color White
Impedance Control Yes


Applications:

The JIETENG brand, known for its commitment to quality and innovation, presents the model PCB circuit board, a Flame-Retardant Printed Board that has been meticulously designed and manufactured in China. This fiberglass-reinforced plastic board is a staple in the electronics industry, providing a resilient and reliable base for a multitude of electronic applications. The FR4 PCB board stands out for its flame retardant properties, making it a safe option for a wide range of electronic applications.

With a copper thickness of 1oz, the JIETENG FR4 PCB board ensures excellent electrical conductivity and durability, suitable for heavy-duty usage. Its minimum hole size of 0.2mm allows for precision component placement, making it an ideal choice for intricate electronic circuits. The incorporation of impedance control is a testament to the board's high-quality design, ensuring signal integrity for the most demanding applications. The solder mask color of green is not only traditional but also provides a stark contrast for visual inspection of solder joints and traces.

The surface finish of HASL (Hot Air Solder Leveling) on the JIETENG model PCB circuit board offers a robust, solderable surface, enhancing the longevity and reliability of the connections. This finish also helps to prevent oxidation of the underlying copper, ensuring that the board maintains its performance over time.

Application occasions for the JIETENG FR4 PCB board are vast, ranging from consumer electronics to industrial controls. It is commonly found in smartphones, computers, and other digital devices, where its flame-retardant properties are essential for safety. In addition, the board is also a perfect match for automotive electronics, aerospace instrumentation, and medical devices, where reliability and compliance with safety standards are of paramount importance.

Scenarios utilizing the JIETENG flame-retardant printed board extend to LED lighting systems, power supplies, and telecommunications equipment. The board's resilience to high temperatures and its excellent electrical insulation make it a preferred choice in these scenarios. Furthermore, the fiberglass-reinforced plastic board is also used in test equipment, security systems, and home appliances, showcasing its versatility and adaptability to various technological requirements.

In summary, the JIETENG model PCB circuit board is a high-quality, versatile flame-retardant printed board that meets the needs of a wide array of applications, ensuring safety, reliability, and performance across the electronics industry.



Customization:

Discover the advanced customization services for the Flame-Retardant Printed Board , tailored by the reputable brand JIETENG. Our esteemed model, the FR4 PCB Board , is renowned for its exceptional quality and durability. Each PCB circuit board is meticulously crafted to meet your specific requirements.

Originating from China, our boards are engineered with precision. The sleek White Silkscreen Color provides a clear contrast for easy component identification, ensuring a seamless assembly process. With a superior Surface Finish of HASL , you can expect reliable solderability and a long-lasting board.

The robust 6-layer construction of the Fiberglass-Reinforced PCB ensures a compact design with ample space for complex circuitry. Our boards are defined by their fine craftsmanship, featuring a Min Line Spacing and Min Line Width of 0.1mm, allowing for high-density designs without compromising signal integrity.

Choose JIETENG for your FR4 PCB needs and benefit from our expert customization services, where quality and precision lead the way.



Support and Services:

The FR4 PCB Board comes with comprehensive technical support and services to ensure your satisfaction and the optimal performance of your product. Our dedicated team of experts is equipped to provide guidance and assistance with any technical issues you may encounter. From troubleshooting to tips on best practices for use and maintenance, we are here to help you maximize the efficiency and lifespan of your FR4 PCB Board.

Our technical support includes detailed documentation and resources that cover specifications, installation procedures, and safety information. We also offer a frequently updated FAQ section on our website, where you can find immediate answers to common questions and concerns.

If you require further assistance, our technical support team is available to provide personalized advice. We're committed to resolving any issues you may face with prompt and effective solutions. Please note that our technical support services do not include physical repairs or replacements, but we can guide you through the process of identifying the problem and recommend the best course of action.

To ensure that your FR4 PCB Board consistently meets your needs, we also provide regular updates and improvements. We are dedicated to the continuous enhancement of our products and services, and we welcome your feedback to help us serve you better. Thank you for choosing our FR4 PCB Board, and we look forward to supporting you.



Packing and Shipping:

The FR4 PCB Board is securely packaged to ensure it arrives in perfect condition. Each board is first wrapped in an anti-static bag, protecting sensitive components from electrostatic discharge. The bagged boards are then sandwiched between two pieces of foam, providing cushioning and preventing movement during transit.

For additional protection, the foam-encased boards are placed inside a sturdy cardboard box, designed to withstand the rigors of shipping. The box is sealed with heavy-duty packing tape, and all seams are reinforced to prevent opening or damage.

To ensure the package is handled correctly, we affix clear labeling on the outside of the box, indicating that the contents are fragile and should be handled with care. Each package is accompanied by a packing slip, detailing the contents and providing handling instructions.

Our shipping partners are selected for their reliability and experience in handling electronic components. Packages are shipped with tracking information provided, allowing both us and the customer to monitor the shipment's progress until final delivery.



FAQ:

Q1: What materials are used in the JIETENG PCB circuit board?

A1: The JIETENG PCB circuit board is constructed from FR4, which is a composite material composed of woven fiberglass cloth with an epoxy resin binder that is flame resistant (self-extinguishing).

Q2: Can the JIETENG PCB circuit board be used for high-frequency applications?

A2: Yes, FR4 material is generally suitable for high-frequency circuits. However, the suitability for high-frequency applications also depends on the specific design and layout of the PCB. It's recommended to review the technical specifications or consult with JIETENG for your specific high-frequency requirements.

Q3: Is the JIETENG PCB circuit board suitable for lead-free soldering processes?

A3: Yes, FR4 PCBs from JIETENG are suitable for lead-free soldering processes. Ensure that you follow the appropriate temperature profiles for lead-free soldering to avoid damaging the board.

Q4: What are the dimensions of the JIETENG PCB circuit board?

A4: The dimensions of the JIETENG PCB circuit board can vary depending on the model and customer requirements. Please provide the specific model number for detailed information about the dimensions or contact JIETENG for custom sizing options.

Q5: How can I ensure the JIETENG PCB circuit board will meet my application requirements?

A5: To ensure the JIETENG PCB circuit board meets your application requirements, you should consider the electrical, mechanical, and thermal properties of the FR4 material, as well as the board's layout, thickness, and trace widths. Consult with JIETENG's technical support team with your application details to get the best recommendations.
